Инструмент диагностический do ремонт двигателя автомобильного иммобилайзер off эмулятор

Оригинальное описание

Narzędzie diagnostyczne do naprawy silnika samochodowego IMMO Off Emulator Czarny zamiennik dla Chryslera

Dane techniczne:

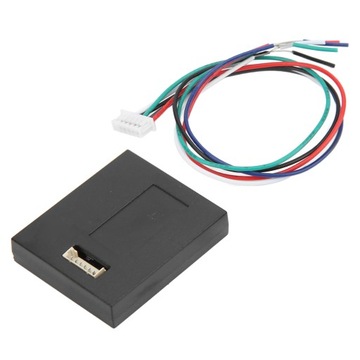

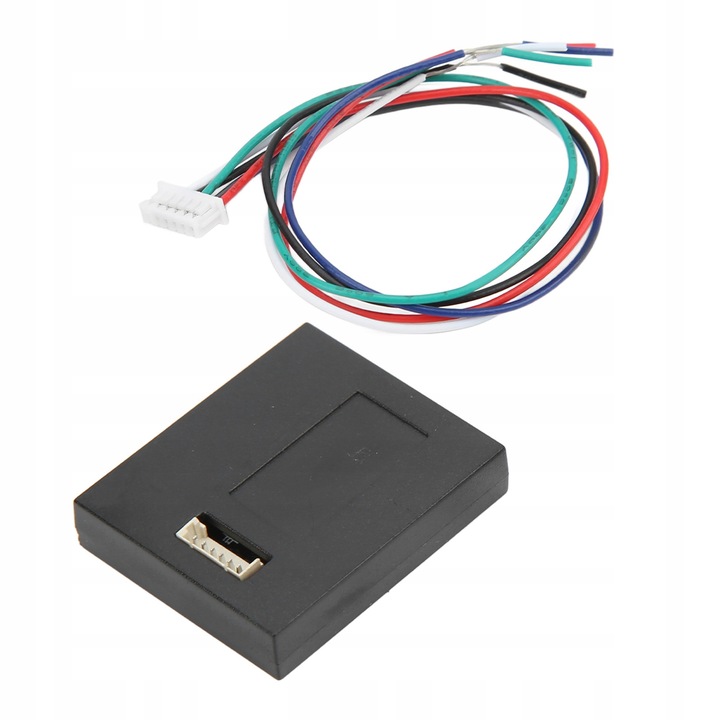

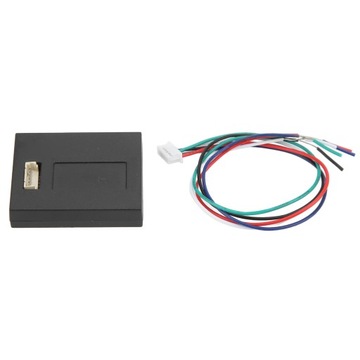

Item Type: IMMO Off Emulator

Material: ABS

Fitment:

Replacement for Chrysler

Replacement for Citroen

Replacement for Daewoo

Replacement for Fiat

Replacement for KIA

Replacement for Mazda

Replacement for Mercedes

Replacement for Cooper

Replacement for Nissan

Replacement for Opel

Replacement for Peugeot

Replacement for Seat

Replacement for Suzuki

V96 Emulator Universal IMMO Emulator Function:

1. For specific model automatic immo OFF

Programs no. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.

Attention! Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from 6to 15.

2. For specific model automatic immo ON

Programs no. 1 and 2 enable the emulator to automatically remove immo from a car by identifying ECU type and selecting a relevant program.

Attention! Selection of programs no.1 and 2 eliminates the possibility to use the remainder of the programs from 6 to 15.

3. For specific model without CAN replacement for Seat

W1 and W2 systems up to around 2001. EDC15 and 5-socket LT28/LT35 ECUs - when the chassis numbers are not entered - even up to 2006. Diesel and petrol Ford cars with specific model systems (the specific model symbol is visible on the ECU).

4. For specific model - replacement for Hitachi, replacement for Seat, It is suitable for group cars with replacement for Hitachi ECU to about 1997.

5. For specific model - Valve Code replacement for Seat, To unlock the valve code on injection pump in vehicles 1.9 Diesel.

6. For specific model EDC15 immo OFF (single use) replacement for Seat Use:

Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006,and even 2008 (except for specific model with coded pump) Suitable for vehicles with 2-socket ECUs.

7. For specific model EDC15 immo ON (single use) replacement for Seat, Use:

Engine capacity: 1.2, 1.4, 1.9, 2.5 with W2 and W3 systems, diesel engines from 2000 to 2004, some to 2006,and even 2008 (except for specific model with coded pump) Suitable for vehicles with 2-socket ECUs.

8. For specific model EDC16 K-LINE immo OFF (single use) replacement for Seat Use:

Suitable for vehicles with 2-socket ECUs

0 281 011 XXX

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

0 281 015 XXX

Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI

9. For specific model EDC16 K-LINE immo ON (single use) replacement for Seat Use:

Suitable for vehicles with 2-socket ECUs

0 281 011 XXX

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

0 281 015 XXX

Engine capacity: 1.9 TDI 2.0 TDI 2.5 TDI

10. For specific model EDC16 with CAN 1.9 2.0 TDI immo OFF (single use) replacement for Seat

Use: Suitable for vehicles with 2-socket ECUs 0 281 012 XXX

11. For specific model EDC16 with CAN 1.9 2.0 TDI immo ON (single use) replacement for Seat

Use: Suitable for vehicles with 2-socket ECUs 0 281 012 XXX

12. For specific model EDC16 with CAN 2.7 3.0 TDI immo OFF (single use) replacement for Seat

Use: Suitable for vehicles with 2-socket ECUs

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

13. For specific model EDC16 with CAN 2.7 3.0 TDI immo ON (single use) replacement for Seat

Use: Suitable for vehicles with 2-socket ECUs

0 281 012 XXX

0 281 013 XXX

0 281 014 XXX

14. For specific model ME7 immo OFF (single use) replacement for Seat

Use: Suitable for vehicles with ME7 for Bosch ECUs

Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2

Production year: from 1999 to 2008

15. For specific model ME7 immo ON (single use) replacement for Seat

Use: Suitable for vehicles with ME7 for Bosch ECUs

Engine capacity: 1.4 1.8 2.0 2.4 2.6 2.8 3.0 3.5 4.2

Production year: from 1999 to 2008

16. Replacement for Chrysler

Use:

Replacement for Chrysler Voyager 2.5TD 1999-2001

Replacement for Dodge Caravan 2.5TD 1999-2001

Replacement for Jeep Cherokee 2.5TD 1999-2001

17. Replacement for Citroen, replacement for Peugeot with CAN

Use: EDC16 1.4 1.6 HDI with CAN

EDC15 HDI with CAN

18. Replacement for Daewoo 1

Use:

ECU with 2 white - red sockets

ECU with a blue socket

19.Replacement for Daewoo 2

Use:

Matiz for SIEMENS, KEMSCO ECU

Tacuma KEMSCO ECU

Lanos 1.4 OHC hybrid ECU

Replacement for Kalos SIRIUS D42 1.2 ECU

Replacement for Chevrolet Aveo 4R ECU 1.2 8V

20. Replacement for Fiat without CAN

Use:

Replacement for Fiat

Replacement for Citroen

Replacement for Peugeot diesel without CAN 2-socket ECU

Replacement for Alfa

Replacement for Lancia

Replacement for Fiat 1.9 Jtd 2.4 Jtd 5-socket ECU

IAW49F replacement for Fiat Bravo 1.6 16V

IAW 4AF replacement for Fiat Seicento, Panda 1.1 8V

Replacement for Lancia Kappa 2.0i 16V Turbo 0 261 203 792

Replacement for Lancia Kappa 2.0i 20V 0 261 203 670

Replacement for Lancia Kappa 2.4i 16V 0 261 203

Replacement for Lancia Kappa 3.0i 24V 0 261 203 482

21. Replacement for Fiat with CAN

ECU 5SF and 6F3

22. Use: Replacement for Accord, replacement for CRV, replacement for Civic and other (production year 1999-2002)

23. Replacement for Kia Sportage 2.0TD

Replacement for Kia Sportage 2.0 TD ECU ZEXEL immo with remote control

24. Replacement for Mercedes CR without CAN Infrared

Use: INFRARED IMMO

12-pin module + 2-pin CAN but only L connected (there is no CAN H) green and red LEDs flash in the mirror.

2.2 Diesel 1-socket Lucas

1.8 2.0 2.3 petrol hybrid SIEMENS ECU

2.0 petrol hybrid for BOSCH ECU

25. Replacement for Mercedes CR1 with CAN WSP

Vito 2.2 Cdi 5-socket ECU

A-class 1.7 Cdi 5-socket ECU

EDC 1-socket ECU

2.5TD 2.9TD 3.0TD with mechanical and electronic ignition switch

for Bosch ECU with HC11E9

E-class 4- socket for Lucas with mechanical and electronic ignition switch

A-Class VDO MSM ECU

1.4 1.6 1.9 gasoline

26. Replacement for Mercedes CR1 with CAN EZS

2-socket (white) VDO ECU with 24c02 memory

27. Replacement for Mercedes CR1 with CAN infrared

2-socket (black) VDO ECU with X24C01 memory

2-socket (yellow) VDO ECU with X24C02 memory

2-socket for Bosch ECU with B58 (24LC02) memory

28. Replacement for Mercedes CR2 with CAN WSP

Sprinter 2.2 Cdi 2.7 Cdi

ML 2.7 Cdi 5 plugs - it starts automatically

it also works in 2.7 and 3.2 with electronic ignition switch

it starts automatically.

29. Replacement for Mercedes ESL - steering wheel column lock emulator.

The emulator works with replacement for Mercedes electronic ignition switch in older models (W202, W208, W210)and allows to

check newer models (W203, W209, W211, Vito 639).

The emulator can also be used to verify the original electronic ignition switch and steering column lock.

30. Replacement for Mercedes ESL2 - steering wheel column lock emulator.

The emulator works with replacement for Mercedes electronic ignition switch in W906 (replacement for Sprinter II, Crafter), W639, W211,

W209, W202, W208, W210

Works with ignition switchs numbered:

A 906 545 64 08

639 545 05 08

208 545 00 08

208 545 01 08

208 545 02 08

208 545 03 08

210 545 00 08

210 545 01 08

210 545 02 08

210 545 03 08

31. Replacement for Nissan NATS 4 and 5

ECU from 2000 to 2002 - NATS 4 and 5 immo

2.2 2.7 diesel 5-socket ECU with 24C04 memory

1.5 gasoline for Hitachi MEC with 93C46 and 93C56 memory

1.8 and 2.0 gasoline for Hitachi MEC with 93C56 memory

Models: Almera, Almera Tino, Primera, Terrano

32. Replacement for Opel immo with HC05

1.2, 1.4 petrol 2-socket (black) ECU with replacement for Motorola HC11E20 processor

2.0, 2.2 and 2.5 petrol ECU with 24C02 eeprom memory

33.

Replacement for SIRIUS 32 with CAN

Replacement for SIRIUS 34 with CAN - NEW !!!

3-socket for DELPHI with CAN - 95080 memory

3-socket for BOSCH EDC15 with CAN - 5P08C3 memory

EMS 3132 with CAN NEW !!!

EMS 3134 with CAN NEW !!!

34.

Replacement for Syrius 32 without CAN

Replacement for Syrius 34 1.4 1.6 2.0

EMS 3132

1.9 2.2 and 2.5 DCI without CAN

1.5 DCI without CAN

1.9 DTI 1-socket ECU

1.9 DTI 2-socket ECU

1.9 Diesel DCU3

2.8 TD

3.0 gasoline 1-socket ECU

35. For specific model without CAN old ECUs

Replacement for Syrius 32 without CAN

Replacement for Syrius 34 1.4 1.6 2.0

EMS 3132

1.9 2.2 and 2.5 DCI without CAN

1.5 DCI without CAN

1.9 DTI 1-socket ECU

1.9 DTI 2-socket ECU

1.9 Diesel DCU3

2.8 TD

3.0 gasoline 1-socket ECU

36. Replacement for Suzuki with X24C01 memory

Engine Control Module with memory X24C01

37. Replacement for Suzuki with OKI memory

Engine Control Module with memory OKI

38. Replacement for Suzuki 93C56 memory

for Denso ECU with 93C56 memory and 29F200 flash.

The car must have 4C or 4D key.

39. TMS 374 - Replacement for Citroen, replacement for Peugeot, replacement for Citroen, replacement for Peugeot

Use: replacement for Citroen, replacement for Peugeot - ECU with TMS374 processor

Sagem SL96

Magnetti Marelli 1AP20, 1AP40, 1AP41, 1AP43, 1AP80, 1AP81, 1AP83, 1AP9

for specific model - ECU with TMS374 processor:

Replacement for Siemens Fenix 5

Replacement for Sagem Safir 1

Replacement for Sagem Safir 2

ECU with TMS374 processor

Replacement for Siemens Fenix 5

(For V40/S40 / 1.8i / 1996-1999/ ECU S113727100C_V0LV0 /30850998-01)

40. for specific model

Use: For specific model motorbikes and scooters from 2004 to 2010.

Example models: YZF R1, YZF R6, FZ6 N, FZ6 S, T-MAX, X-MAX, V-MAX.

Replacement for Seat occupancy sensor programs

1. For specific model

Europe from 2007 to 2010 year without installed child seat.

Models: E60, E63, E64, E65, E70, E71, E81, E90, E92, E93

For specific model from 1997 to 2007 without installed child seat

Models from 1997 to 2003: E31, E36, E38, E39, E46, E53

Models from 2003 to 2007: E60, E63, E65, E87, E90

For specific model from 1997 to 2007 with installed child seat

Models from 1997 to 2003: E31, E36, E38, E39, E46, E53

Models from 2003 to 2007: E60, E63, E65, E87, E90

2. Replacement for Fiat

Replacement for FIAT STILO without installed child seat.

Replacement for FIAT STILO with installed child seat.

3. Replacement for Mercedes

Without installed child seat:

Models: E-class W211 (2002-2004), S class W220 (2003-2005), A-class W168, C-class W202, Vito W638, ML, E-

class W210, Vito W639, ML W163, A-class W168, S class W220, C-class W203, CLK W209, Vaneo, E-class

W210

With installed child seat: E-class W211 (2002-2004), S class W220 (2003-2005), A-class W168, C-class, W202,

Vito W638, ML, E-class W210, E-class W210, Vito W639, ML W163, A-class W168, S class W220, C-class

W203, CLK W209, Vaneo

Replacement for Mercedes from 2004 to 2011 year

Models: E-class W211 2004 do 2007 Temic, SL W230 modele z 2004, SLK W171 2004 do 2011

Replacement for Mercedes from 2003 to 2010 year

Models: E-class W211 from 2003 to 2007, for Bosch contoller, C-class W203 from 2006 to 2007, CLS W219 from

2005 to 2010, CLK W209 from 2006 to 2009, S class W220 from 2002 to 2005, S class W221 year 2006 only

4. Replacement for Cooper

Replacement for Cooper 2002-2005 year without installed child seat.

Replacement for Cooper 2002-2005 year with installed child seat.

5. Replacement for Mazda

Without installed child seat.:

Models: Premacy, MX-5, 626, 323, 6 With installed child seat:

Models: Premacy, MX-5, 626, 323, 6

Tacho programs

1. Replacement for Q7 and A6

2. Replacement for Citroen C4 Picasso

3. EMF Display

4. Replacement for Kangoo 3 Display

5. Replacement for Scenc II, Espace IV Tacho

6. Replacement for Scenic Full

7. Replacement for Scenic III + Navi

8. Replacement for B6

Lista pakietów:

1 x emulator wyłączenia IMMO

1 x kabel

Cechy:

1.Akcesorium uniwersalne: Emulator jest rozbudowanym zamiennikiem Citroena, zamiennikiem Daewoo, zamiennikiem Fiata, zamiennikiem KIA, zamiennikiem Mazdy i wielu innych modeli. 2. Kompaktowy i przenośny: Emulator IMMO off jest niewielki i lekki, co ułatwia przenoszenie, zajmuje mniej miejsca i jest wygodniejszy w użyciu. 3. Materiały najwyższej jakości: Uniwersalny emulator IMMO wykonany jest ze starannie wyselekcjonowanego tworzywa ABS, a wysokiej jakości kabel charakteryzuje się także doskonałą elastycznością i trwałością. 4.Kontrola jakości: Emulator IMMO samochodu jest produkowany z najwyższą starannością, aby był zgodny ze standardowymi specyfikacjami i ściśle przestrzegał kontroli jakości pod kątem niezawodności. 5. Profesjonalna produkcja: zestaw emulatorów immobilizera przeszedł szeroko zakrojone testy jakości i bezpieczeństwa, aby zapewnić wydajność stołu i wysoką wydajność.
